SSO for GitLab
Overview
Akku, developed by CloudNow Technologies, is a robust Identity & Access Management (IAM) solution designed to streamline user provisioning, access management, and activity monitoring throughout the user lifecycle. It offers administrators the tools to efficiently manage user privileges and ensure data security in cloud environments. With Akku, organizations can confidently embrace cloud technology while maintaining compliance with standards and regulations. Its comprehensive features enable seamless onboarding, secure authentication, a single point-of-access to all applications, enforcement of access policies, and monitoring of user activity to detect and respond to security threats effectively while enhancing the user experience significantly. By prioritizing data security, privacy, and compliance, Akku provides users with peace of mind while improving overall productivity. With its flexible and scalable architecture, Akku is well-equipped to meet the evolving needs of modern organizations in managing their identity and access requirements.
Introduction
GitLab SAML SSO with Akku provides a secure and reliable method for authenticating users. To set it up, you'll need a GitLab account, an Akku account, and the SAML SSO Integration feature enabled. First, configure your Akku instance by adding the GitLab SAML SSO app and specifying the required fields. Then, grant Akku permission to access your GitLab domain. Next, set up the SAML request URL and authentication URL in your Akku instance. Finally, test your integration to ensure seamless authentication for your users.
Configure GitLab for SSO
The steps listed below provide instructions on adding the GitLab application from the QuickLaunch App Store and configuring SAML SSO for the added application

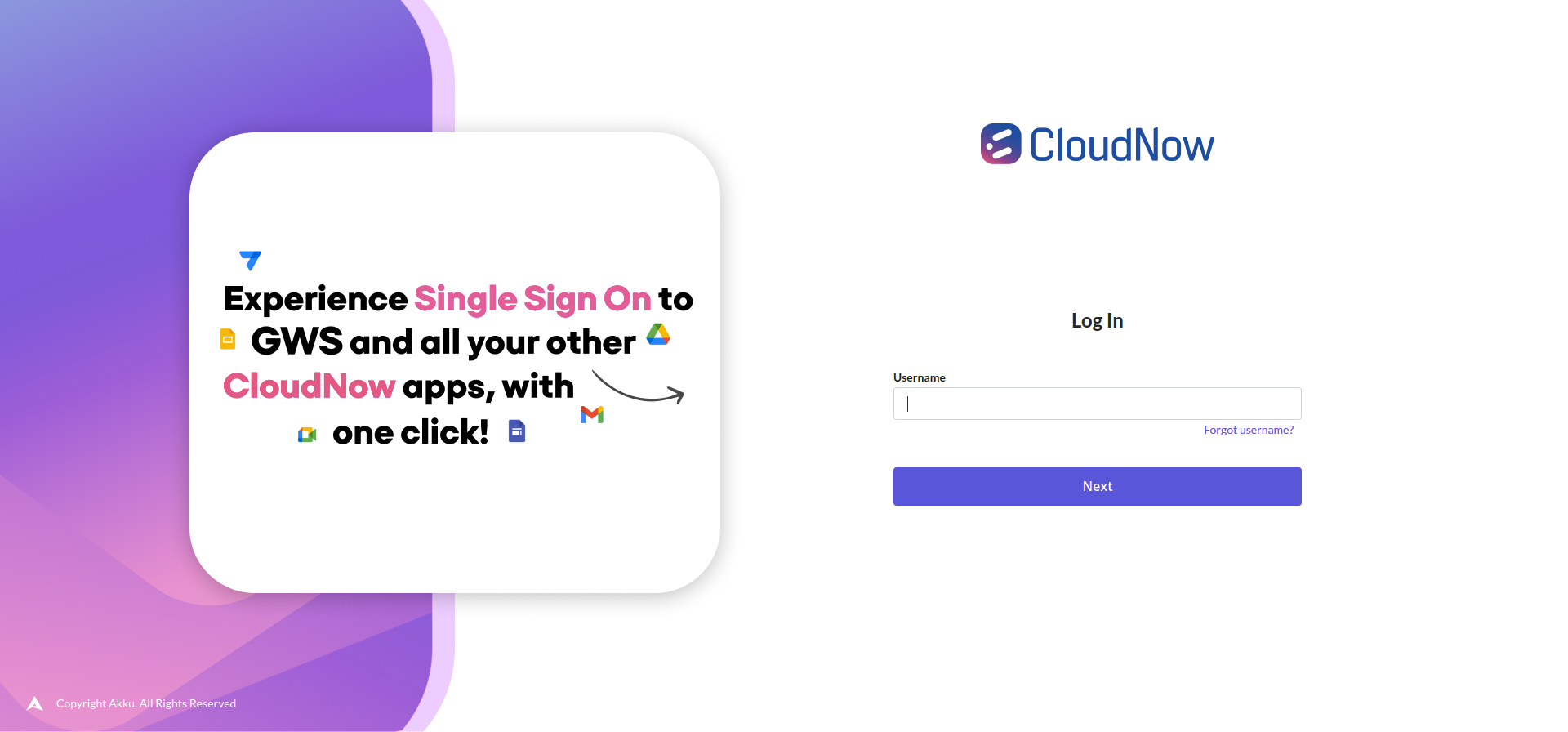

Login into Akku
Login into Akku using the tenant url using username and password
https://yourclientName.akku.work
Navigate to App Management and Search for GitLab

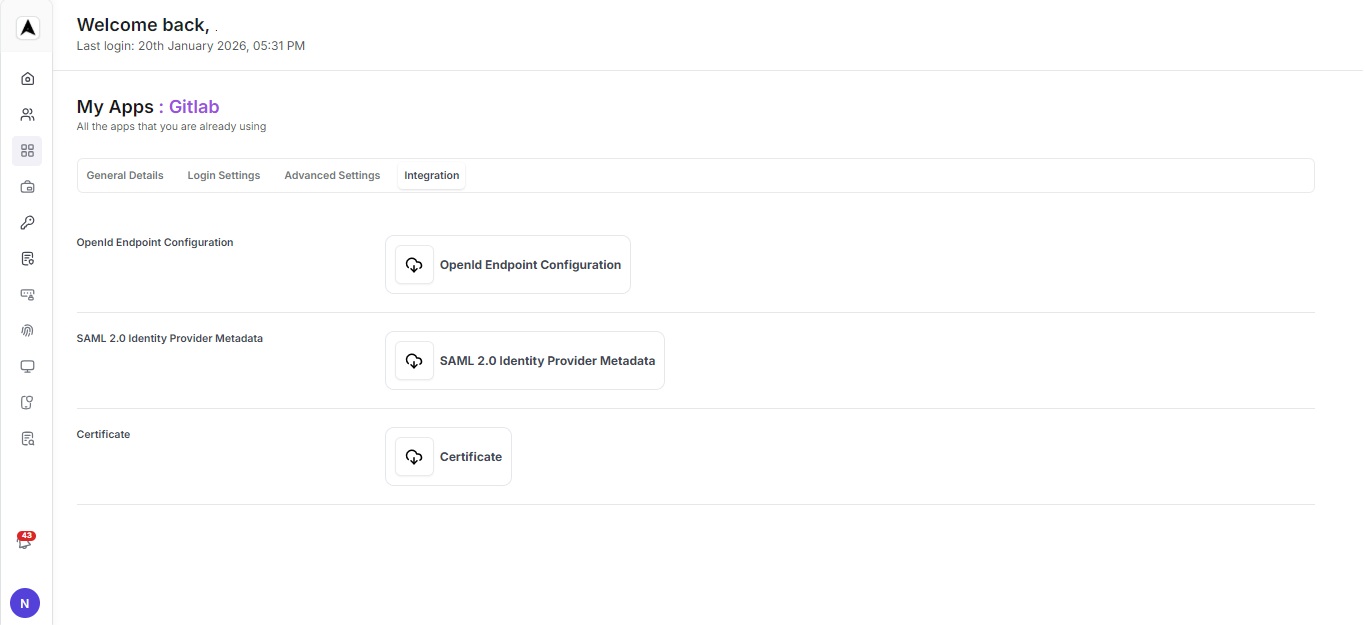

Navigate to App Management and search for GitLab in the Available Apps. Click on setup and navigate to Integration tab to download/generate the SAML metadata file.
Edit Server Configurations for GitLab
Edit /etc/gitlab/gitlab.rb and add the following lines to it:
### OmniAuth Settings
###! Docs: https://docs.gitlab.com/ee/integration/omniauth.html
gitlab_rails['omniauth_enabled'] = true
gitlab_rails['omniauth_allow_single_sign_on'] = ['saml']
gitlab_rails['omniauth_auto_sign_in_with_provider'] = 'saml'
gitlab_rails['omniauth_auto_link_ldap_user'] = true
gitlab_rails['omniauth_auto_link_saml_user'] = true
gitlab_rails['omniauth_providers'] = [
{
name: "saml",
label: "Akku",
args: {
assertion_consumer_service_url: "https://gitlab.example.com/users/auth/saml/callback",
idp_cert_fingerprint: "Replace it with the IDP certificate fingerprint",
idp_sso_target_url: "Replace this with the SSO URL fetched for the IDP metadata",
issuer: "GitLab",
name_identifier_format: "urn:oasis:names:tc:SAML:2.0:nameid-format:persistent"
}
}
]Save and Reconfigure GitLab
Save the file and reconfigure GitLab:
sudo gitlab-ctl reconfigure
sudo gitlab-ctl restartGenerating Metadata for SP
Register the GitLab SP in your SAML IdP. To provide configuration information to the IdP, build a metadata URL for the application. Add users/auth/saml/metadata to the HTTPS URL of your GitLab installation to create the metadata URL.
https://gitlab.example.com/users/auth/saml/metadataConfigure AKKU based on GitLab Metadata
Configure Akku with the metadata from GitLab
Log in to Akku's Administration Console
Log in to Akku's Administration console with your tenant URL.
Navigate to App Management
Navigate to App Management and search for GitLab.
Configure SSO Settings

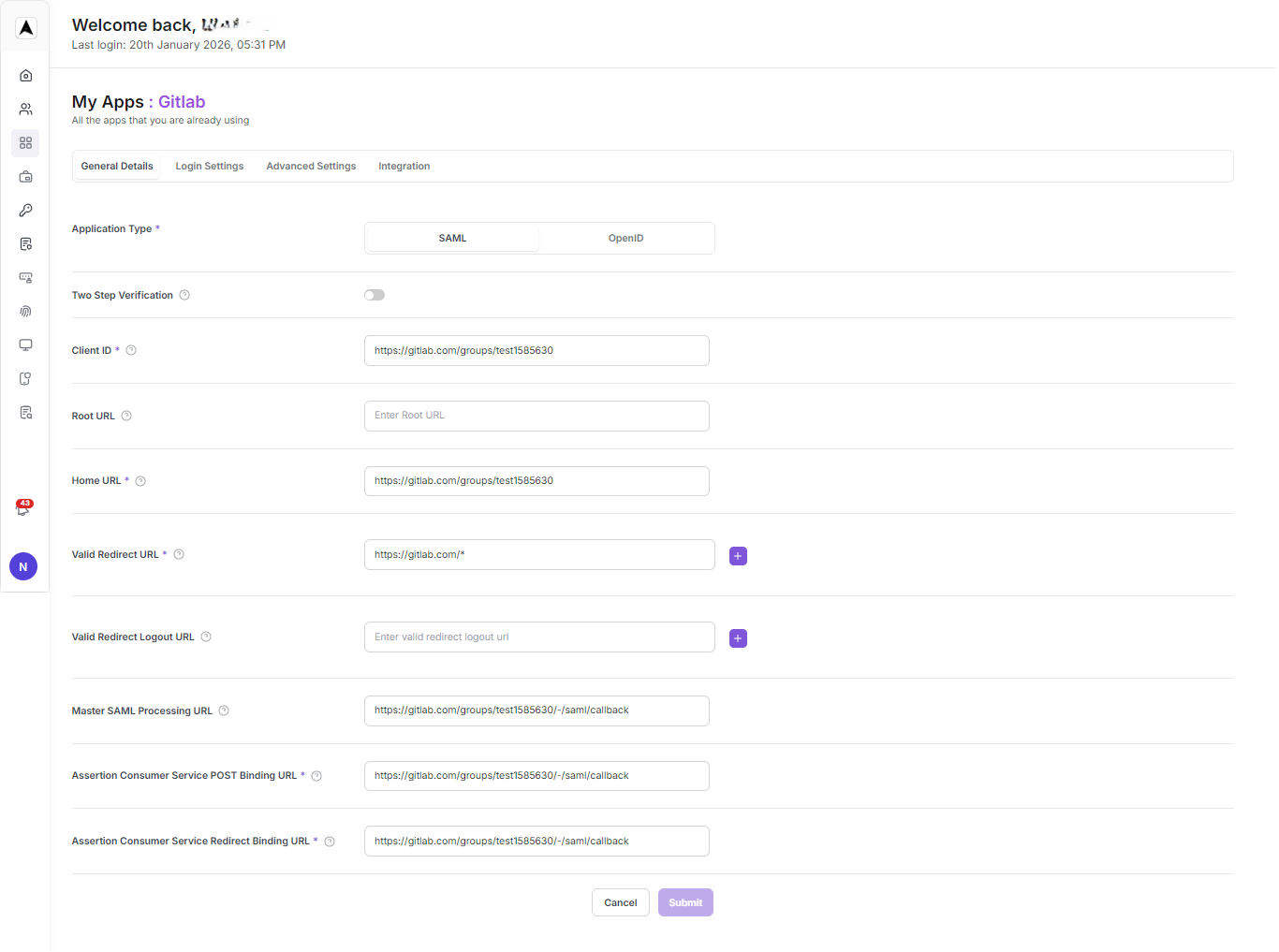

Click 'Setup' / 'Configure SSO' on the GitLab App and configure the necessary information based on the GitLab metadata file.
Client ID is the Entity ID from the SP metadata
Home URL is the GitLab with the Domain URL
eg; https://gitlab.example.com
Valid redirect URL is from the IDP metadata
eg; https://gitlab.example.com/*
Assertion Consumer Service POST Binding URL is fetched from the IDP metadata
eg; https://gitlab.example.com/users/auth/saml/callback
Assertion Consumer Service Redirect Binding URL is fetched from the IDP metadata
eg; https://gitlab.example.com/users/auth/saml/callback

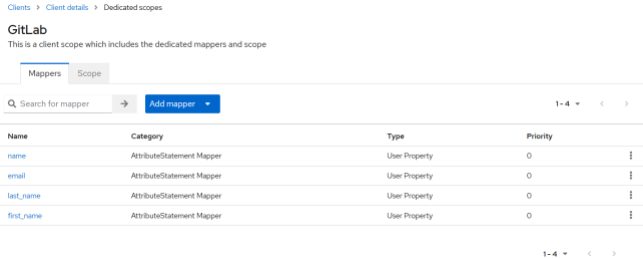

Configure User Property and NameID Format
Add the user property in keycloak and make the NameID format a persistent.
